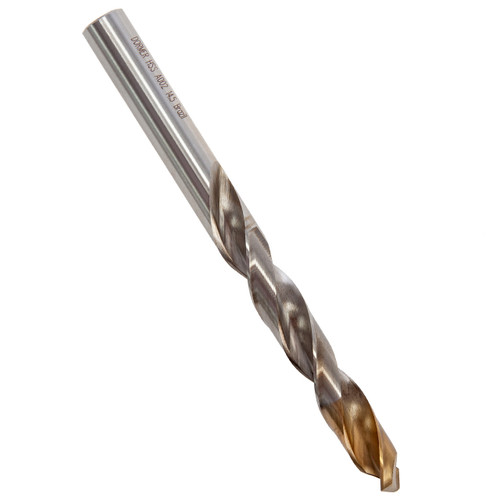

Dormer A002 HSS TiN Coated Tip Jobber Drill Bit 14.5mm
The Dormer A00214.5 is a single Jobber length drill with a straight shank. It has a diameter of 14.5mm with an overall length of 169mm and flute length of 114mm according to DIN 338 standard with 118° conical point, HSS with TiN-tip coating for 4xD drilling without pecking in steel. Can be used for drilling many materials including steel, aluminium and stainless steel.
Features:
- Bright and TiN (Tip Coating)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- Gross weight: 157 grams
- Cutting diameter - (DC): 14.5 mm
- Cutting diameter - (DC): 0.5709 inch
- Length chip flute - (LCF): 114 mm
- Overall length - (OAL): 169 mm
- Connection diameter - (DCON MS): 14.5 mm
- Length chip flute - (LCF): 4.4882 inch
