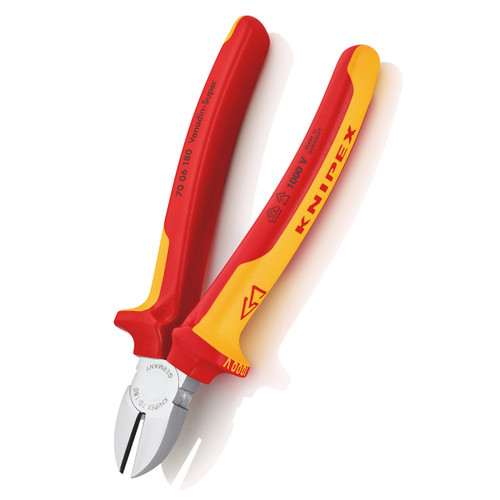

Knipex Diagonal Cutter, the classic for the craftsman’s everyday work – insulated up to 1000V
The Knipex 7006180SB (carded) Diagonal Cutter is a powerful, quality tool for discerning users. From the shape of the head through to the polish and hardness of the cutting edges, they are designed for the diverse cutting tasks in the day-to-day work of electricians and mechatronics engineers. They are insulated using multi-component grips in accordance with the insulation standard IEC 60900 / DIN EN 60900. With their cutting capacities of up to Ø 2.5 mm on hard wire (e.g. wire rope fibre) and up to Ø 4.0 mm on soft wire (e.g. copper wire), the Knipex 70 06 180 diagonal cutters offer a broad range of applications. The long cutting edges make them ideal for cutting cable. The extremely carefully and precisely machined cutting edges enable even very fine stranded wire to be cut accurately – up to the tips of the cutting edges. This is a great advantage where space is restricted, for example when shortening fine stranded wires in junction boxes or during work on distribution boxes. Knipex diagonal cutters are forged from vanadium electric steel and make them strong by warming them and then quenching them in oil. To achieve a permanently accurate cut we additionally use high-frequency current to give the cutters a hardness of approx. 62 HRC. Chrome plating is effective rust protection that pays off during outdoor use, for example. Thanks to the chrome plating, the diagonal cutters are particularly easy to clean.
Features:
- The indispensable diagonal cutter for all-round use
- High-quality material and precise workmanship for long service life
- Precision cutting edges for soft and hard wire
- Clean cutting of thin copper wires, also at the cutting edge tips
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
- Narrow head style for use in confined areas
- With bevel
- Vanadium electric steel, forged, multi stage oil-hardened
Specification:
- Part number: 7006180SB
- Pliers: chrome plated
- Head: chrome plated
- Handles: insulated with multi-component grips, VDE-tested
- Dimensions: 180 x 56 x 20 mm
- Standard: DIN ISO 5749 DIN EN 60900 IEC 60900
- Cutting capacities soft wire (diameter): Ø 4.0 mm
- Cutting capacities medium hard wire (diameter): Ø 3.0 mm
- Cutting capacities hard wire (diameter): Ø 2.5 mm
- VDE tested: yes
- Weight: 0.254kg
