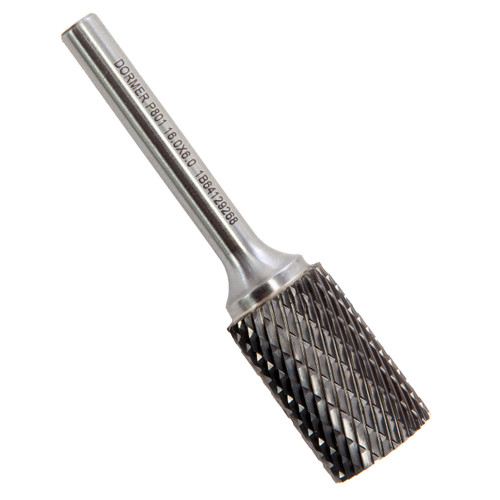

Dormer P801 Rotary Burr - Cylinder Without End Cut 16.0mm x 6.0mm
This Dormer P801 Rotary Burr has a 16.0mm diameter and 6mm shank. HM Rotary burr with DC cut-style, form A cylinder without end cut for steel <1620 N/mm² and tempered steels 49-63 HRc, Stainless steel, iron, titanium and nickel alloys, brass alloy and graphite. Dormer’s range of carbide burrs is a high-quality, comprehensive program which includes designs and shapes to offer a solution for the majority of applications in all major industry segments. The combination of premium grade materials for both shank and head with the precise production processes results in a consistent and secure product which Dormer consider essential in the usage of carbide burrs.
Features:
- Carbide provides excellent wear resistance and improved tool life
- Double cut design improves ease of control, increases metal removal rate and breaks swarf into manageable pieces
- Carbide shank ground to h6 for improved holding stability (on sizes 6mm and below)
- Toughened and hardened steel shank ground to h7 for rigidity and strength (on sizes above 6mm)
- Special brazing elements provide excellent braze strength, impact resistance and tool life
Specification:
- Diameter: 16.0mm
- Shank: 6mm
- Burr length: 25mm
- Overall length: 70mm
