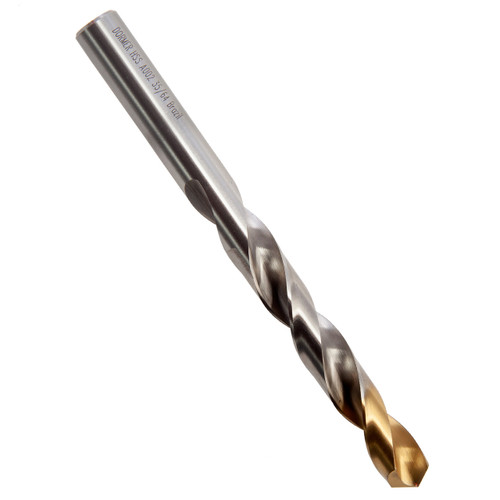

Dormer A002 HSS TiN Coated Tip Jobber Drill Bit 35/64in
The Dormer A00235/64 is a single Jobber length drill with a straight shank. It has a diameter of 35/64in with an overall length of 160mm and flute length of 108mm according to DIN 338 standard with 118° conical point, HSS with TiN-tip coating for 4xD drilling without pecking in steel. Can be used for drilling many materials including steel, aluminium and stainless steel.
Features:
- Bright and TiN (Tip Coating)
- High Speed Steel Tool Material
- DIN 338 – Straight Shank Drill Standards
- 4×D Usable Tool Depth to Diameter Ratio
- Drill Point 118°
- Cylindrical Shank / Straight Shank
- Standard Spiral Flute Design
- Right Hand Rotation / Cutting
- h8 – Industry Standard Tool Tolerance Zone (based on diameter range)
Specification:
- DIN338
- Overall Length: 160mm
- Cutting Length: 108mm
- Head Diameter: 35/64 in
